4x Port 100Base-Tx Magnetics H1060NL , H1060NLT 40pins SMD Transformer Ethernet

China 4x Port 100Base-Tx Magnetics H1060NL , H1060NLT 40pins SMD Transformer Ethernet supplier
4x Port 100Base-Tx Magnetics H1060NL , H1060NLT 40pins SMD Transformer Ethernet supplier 4x Port 100Base-Tx Magnetics H1060NL , H1060NLT 40pins SMD Transformer Ethernet supplier 4x Port 100Base-Tx Magnetics H1060NL , H1060NLT 40pins SMD Transformer Ethernet supplier

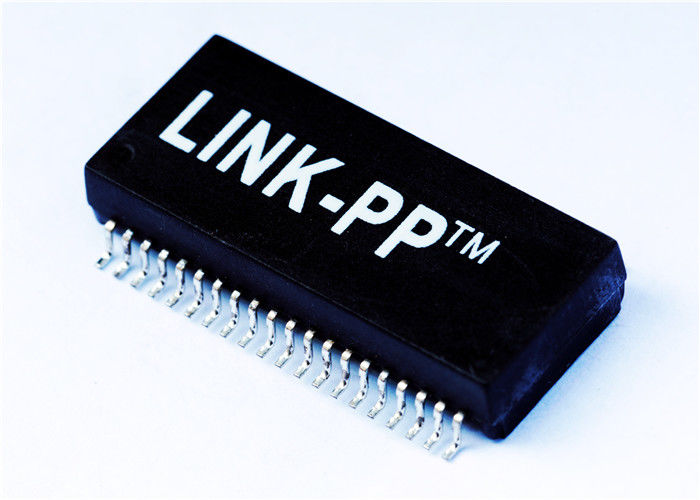

Large Image :  4x Port 100Base-Tx Magnetics H1060NL , H1060NLT 40pins SMD Transformer Ethernet

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: H1060NLT

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: H1060NLT P/N: LP11XXNL
Measure: 28.58mm L X 12.19mm W X 5.84mm H Mounting: SMT
Ethernet: 4 Port 10/100Mbps Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

4x Port 100Base-Tx Magnetics H1060NL , H1060NL 40pins SMD Transformer Ethernet



RoHS peak reflow temperature rating: 245°C
Meets IEEE 802.3 specification H1060NLT  Specifications
Models designed to support four single or double-stacked RJ-45 connectors

Audio Transformers / Signal Transformers 10/100Base-TX SMD 4-Port

10/100Base-TX Quad Port Transformer Modules H1060NL Equivalent Cross

For Use with Tranceivers Requiring 1:1 Transmit and Receive Turns Ratio



Series

 Quad Port 100Base-Tx Magnetic Transformers

Packaging

Tape & Reel (TR)

Part Status

Updated

Transformer Type

Isolation and Data Interface (Encapsulated)

Equivalent

LINK-PP LP11XXNL Series

Turns Ratio - Primary:Secondary

1 : 1 Transmitter, 1 : 1 Receiver

Mounting Type

Surface Mount

Size / Dimension

28.58mm L x 12.19mm W

Height - Seated (Max)

5.84mm

Weight

0.14 oz (3.99g)



4x Port 100Base-Tx Magnetics H1060NL , H1060NLT 40pins SMD Transformer Ethernet



1200NL Equivalent Cross

H1200NLT Compatible Replacement Part

H1244NLT Equivalent

H1244NL Equivalent
