Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

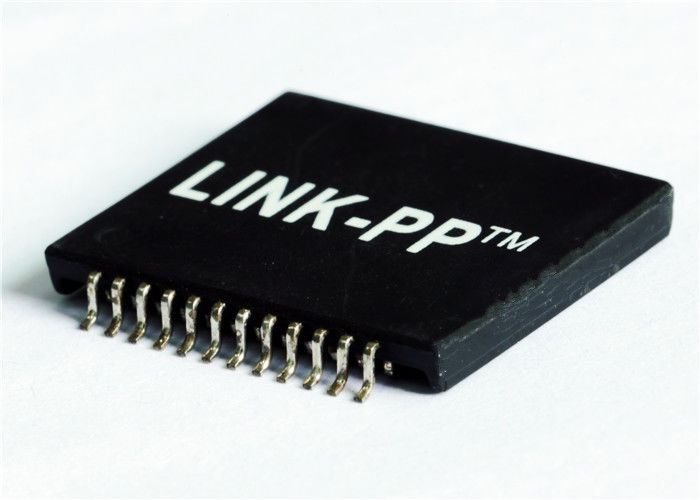

Model Number: H5019NLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
H5019NLT |
Part Number: |
LP5019NL |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Speed: |
10/100 Base-TX |
Application: |
1000Base-T PC |
Temperature Range: |
0℃ To +70℃/-40℃ To +85℃ |
Samples: |
Available |
Specifications: |
H5019NLT |
Part Number: |
LP5019NL |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Speed: |
10/100 Base-TX |
Application: |
1000Base-T PC |
Temperature Range: |
0℃ To +70℃/-40℃ To +85℃ |
Samples: |
Available |
| Function | Designed to Support 1:1 Turns Ratios Receivers |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Transformer Type | DATACOM TRANSFORMER |
| Application | 1000 BASE-T |
| Insertion Loss | 1.0 dB |
| Isolation Voltage | 1500.0 V |
| Series | H5019 Specification |
| Mounting Feature | SURFACE MOUNT |
| Number of Functions | 4 |
| Number of Primary Winding | 4.0 |
| Operating Frequency-Min | 1000.0 kHz |
| Operating Frequency-Max | 100000.0 kHz |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Packing Method | TUBE |
| Physical Dimension | L19.81XB16.64XH2.54 (mm) |
| Primary Inductance | 350.0 µH |
| Sub Category | Other Transformers |
| Turns Ratio (Np:Ns) | 1:1; 1:1 |
| Height | 2.54 mm |
| Length | 19.81 mm |
| Width | 16.64 mm |
| Additional Feature | HEIGHT DIMENSION INCLUDES TERMINAL ALSO |
H5019NL Compatible H5019NLT
H5019NL Equivalent H5019NLT
H5019NL Cross H5019NLT
H5019BNL,H5019BNLT Equivalent Cross Compatible HX5019BNL HX5019BNLT
HX5180NL , HX5180NLT Equivalent Cross Compatible
