H1027NL 10/100BASE-TX DUAL PORT Magnetic Transformer H1028NLT

China H1027NL 10/100BASE-TX DUAL PORT Magnetic Transformer H1028NLT supplier
H1027NL 10/100BASE-TX DUAL PORT Magnetic Transformer H1028NLT supplier H1027NL 10/100BASE-TX DUAL PORT Magnetic Transformer H1028NLT supplier H1027NL 10/100BASE-TX DUAL PORT Magnetic Transformer H1028NLT supplier

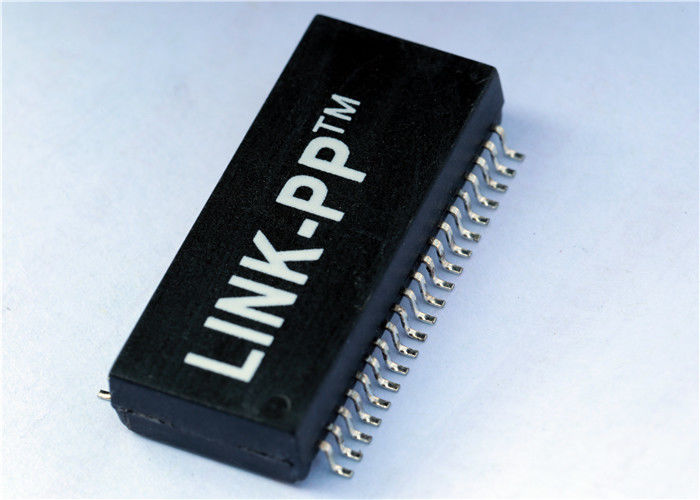

Large Image :  H1027NL 10/100BASE-TX DUAL PORT Magnetic Transformer H1028NLT

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: H1027NL

Payment & Shipping Terms:

Minimum Order Quantity: 3000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: H1027NL P/N: LP11XXNL
Measure: 28.58mm X 16.26mm X 5.84mm Mounting: SMT
Ethernet: 2 Port 10/100Mbps Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

H1027NL 10/100BASE-TX DUAL PORT Magnetic Transformer H1028NLT



Audio Transformers / Signal Transformers 10/100Base-TX SMD 2-Port

10/100BASE-TX DUAL PORT TRANSFORMER MODULES
For Use with Transceivers Requiring 1:1 Transmit and Receive Turns Ratios

10/100BASE-TX DUAL PORT TRANSFORMER MODULES For Use with Transceivers Requiring 1:1 Transmit and Receive Turns Ratios



Mfr Package Description ROHS COMPLIANT
REACH Compliant Yes
EU RoHS Compliant Yes
Status Alternated by LINK-PP
Transformer Type DATACOM TRANSFORMER
Application 10/100 BASE-TX
Isolation Voltage 1500.0 V
Manufacturer Series H1027NL , H1028NLT
Mounting Feature SURFACE MOUNT
Number of Functions 2
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Packing Method TAPE & REEL; TUBE
Physical Dimension 28.58mm X 16.26mm X 5.84mm
Primary Inductance 350.0 µH
Terminal Finish MATTE TIN
Turns Ratio (Np:Ns) 1:1; 1:1; 1:1; 1:1
Height 5.84 mm
Length 28.58 mm
Width 16.26 mm
Additional Feature HEIGHT AND BREADTH DIMENSIONS INCLUDE TERMINALS ALSO



H1028NLT Equivalent Cross

H1027NL Compatible Replacement Part

H1027NLT Equivalent Alternative

H12H1028NLT 44NL Equivalent Alternated part
