749020022A Dual 1000Base-T Ethernet Magnetic Transformers LP5020NLR

China 749020022A Dual 1000Base-T Ethernet Magnetic Transformers LP5020NLR supplier
749020022A Dual 1000Base-T Ethernet Magnetic Transformers LP5020NLR supplier 749020022A Dual 1000Base-T Ethernet Magnetic Transformers LP5020NLR supplier 749020022A Dual 1000Base-T Ethernet Magnetic Transformers LP5020NLR supplier 749020022A Dual 1000Base-T Ethernet Magnetic Transformers LP5020NLR supplier

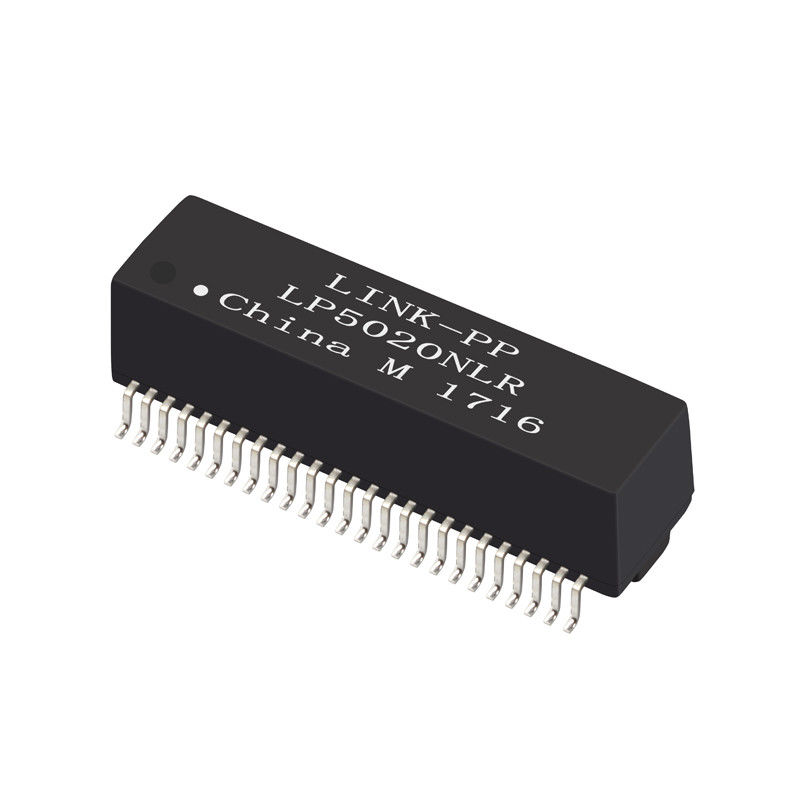

Large Image :  749020022A Dual 1000Base-T Ethernet Magnetic Transformers LP5020NLR

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 749020022A

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specification: 749020022A P.N China: LP5020NLR
Frequency Range: 1 MHz To 100 MHz Application: Dual 10/100/1000Mbps
Termination Style: SMD/SMT Solation Voltage:: 1.5KV
Samples: Free

749020022A Dual 1000Base-T Ethernet Magnetic Transformers LP5020NLR



Dual Port, 1000 BASE-T Ethernet Telecom Transformer Modules, SMD,Rohs
LINK-PP Part Number LP5020NLR
Speed 1000BASE-T
Number of Ports Dual
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature - 40 TO + 85
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 16
Package Height (Inches) 0.340
Package Height (mm) 8.66
Package Length (Inches) 1.100
Package Length (mm) 27.94
Package Width (Inches) 0.430
Package Width (mm) 10.92
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

749020022A  Equivalent Part / Cross Compatible Specification

749020022A Dual 1000Base-T Ethernet Magnetic Transformers LP5020NLR

Electrical Specifications @25℃

1.Insertion Loss:
  1-100MHz:-1.2dB Max
2.Return Loss:
  1-30MHz:-16dB Min
  40MHz:-14dB Min
  50MHz:-13dB Min
  60-80MHz:-12dB Min
3.Crosstalk:
  30MHz:-45dB Min
  60MHz:-40dB Min
  100MHz:-35dB Min
4.Differential to Common Mode Rejection:
  30MHz:-43dB Min
  60MHz:-37dB Min
  100Mhz:-33dB Min
5.Isolation Voltage:1500Vrms
6.Operating Temperature: -40℃~+85℃.

 749020022A Dual 1000Base-T Ethernet Magnetic Transformers LP5020NLR
