Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: S558-5999-AA-F
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
S558-5999-AA-F |
Transformer Type: |
Isolation And Data Interface |
Turns Ratio: |
1CT : 1CT |
Network: |
4x 100Base-T Eth |
Hipot: |
1500V |
Equivalent: |

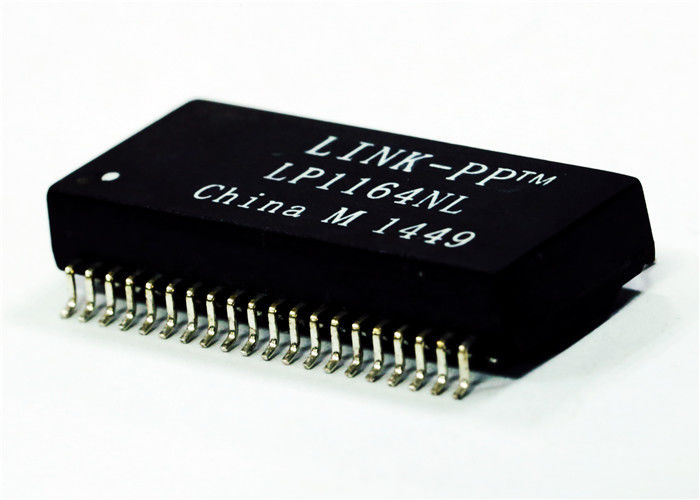

LP1164NL |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
S558-5999-AA-F |
Transformer Type: |
Isolation And Data Interface |
Turns Ratio: |
1CT : 1CT |
Network: |
4x 100Base-T Eth |
Hipot: |
1500V |
Equivalent: |
LP1164NL |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Specification | S558-5999-AA-F Compatible |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active for Equivalent LP1164NL Compatible pin to pin |
| Transformer Type | DATACOM TRANSFORMER |
| Application | 10/100 BASE-T x 4 Ports |
| Insertion Loss | 1.0 dB |
| 100% Cross | S558-5999-AA-F |
| Mounting Feature | THROUGH HOLE MOUNTED |
| Number of Functions | 4 |
| Operating Frequency-Min | 100.0 kHz |
| Operating Frequency-Max | 100000.0 kHz |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Physical Dimension | L27.94XB12.09XH4.47 (mm) |
| Primary Inductance | 350.0 µH |
| Sub Category | Other Transformers |
| Turns Ratio (Np:Ns) | 1CT:1CT; 1CT:1CT |
| Height | 4.47 mm |
| Length | 27.94 mm |
| Width | 12.09 mm |
