XFGIB1008A , XFGIB1008 1000Base-T Module Magnetic SMT Transformer

China XFGIB1008A , XFGIB1008 1000Base-T Module Magnetic SMT Transformer supplier
XFGIB1008A , XFGIB1008 1000Base-T Module Magnetic SMT Transformer supplier XFGIB1008A , XFGIB1008 1000Base-T Module Magnetic SMT Transformer supplier XFGIB1008A , XFGIB1008 1000Base-T Module Magnetic SMT Transformer supplier XFGIB1008A , XFGIB1008 1000Base-T Module Magnetic SMT Transformer supplier XFGIB1008A , XFGIB1008 1000Base-T Module Magnetic SMT Transformer supplier

Large Image :  XFGIB1008A , XFGIB1008 1000Base-T Module Magnetic SMT Transformer

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: XFGIB1008A

Payment & Shipping Terms:

Minimum Order Quantity: 200
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specs: XFGIB1008A Spec-2: XFGIB1008
Pin No: 50pins Series: Dual Port GigE Transformer
Termination Style: SMD/SMT Isolation Voltage:: 1.5KV
Samples: Free Offer

XFGIB1008A , XFGIB1008 1000Base-T Module Magnetic SMT Transformer

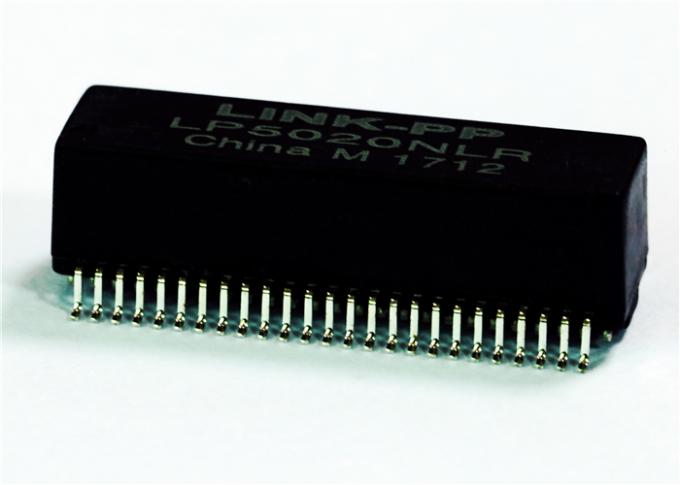

  • LP5020NLR Product Features:
  • Dual Port Gigabit Ethernet Transformer/Choke
  • Slimline Package Design 1000Base-T Module Magnetic SMT Transformer
  • IEEE802.3ab Compliant
  • UL/EN60950 Recognized
  • 100% Electrical Testing
  • 1500Vrms Hi-Pot
  • Patented Open Frame Construction
  • XFGIB1008A Compatible / Cross / Pin to Pin
  • Dual Port GigE Transformer Analogue to  XFGIB1008



Electrical Specifications @25℃


1.Insertion Loss:
  1-100MHz:-1.2dB Max
2.Return Loss:
  1-30MHz:-16dB Min
  40MHz:-14dB Min
  50MHz:-13dB Min
  60-80MHz:-12dB Min
3.Crosstalk:
  30MHz:-45dB Min
  60MHz:-40dB Min
  100MHz:-35dB Min
4.Differential to Common Mode Rejection:
  30MHz:-43dB Min
  60MHz:-37dB Min
  100Mhz:-33dB Min
5.Isolation Voltage:1500Vrms
6.Operating Temperature: 0℃~+70℃.

 XFGIB1008A , XFGIB1008 1000Base-T Module Magnetic SMT Transformer

XFGIB1008A , XFGIB1008 1000Base-T Module Magnetic SMT Transformer
