| Specifications: | LS-SM3124-10 Series | Ethernet: | Gigabit Ethernet |
|---|---|---|---|
| Applications: | General Purpose | Optical Systems: | 1.25Gbps |
| Mounting Type: | Hot-pluggable SFP Footprint | Voltage: | Single +3.3V Power Supply |
| Environment: | Lead Free / RoHS Compliant | Reach: | 10km |
| Highlight: | fiber sfp module,fiber optic transceiver |
||

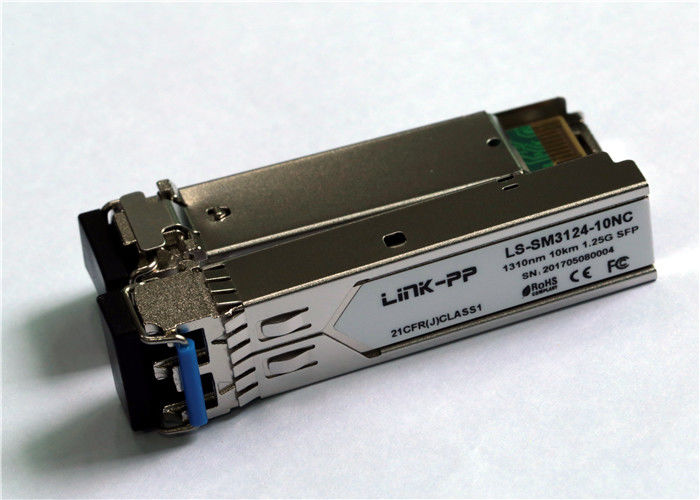

LS-SM3124-10xx
Product Features
Supports up to 1.25Gbps bit rates
Hot-pluggable SFP footprint
1310nm FP laser and PIN photo detector, Up to 10km for SMF transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
1.25Gbps Optical systems
Gigabit Ethernet
1.063Gbps Fiber Channel
Other Optical links
Description
The SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps
and 10km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a
trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety
requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics
functions.
Ordering information
Part Number Product Description
LS-SM3124-10DC 1310nm, 1.25Gbps, LC, 10km, 0°C~+70°C, with DDM
LS-SM3124-10DI 1310nm, 1.25Gbps, LC, 10km, -40°C~+85°C, with DDM
LS-SM3124-10NC 1310nm, 1.25Gbps, LC, 10km, 0°C~+70°C, without DDM
LS-SM3124-10NI 1310nm, 1.25Gbps, LC, 10km, -40°C~+85°C, without DDM
