Home > products > Vertical RJ45 Jack > RV1-1100QP1A Vertical RJ45 Jack 10Position PCB Mounting for 1000Base-T Gigabit

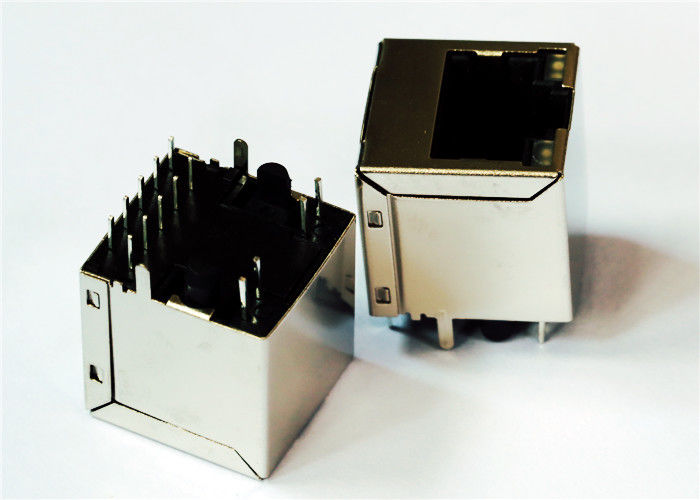

RV1-1100QP1A Vertical RJ45 Jack 10Position PCB Mounting for 1000Base-T Gigabit

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: RV1-1100QP1A

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 54 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10KGS (1080 pcs) of each carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

multi port connector

Specifications:
RV1-1100QP1A
P.N:
LPJD0608BHNL
Mounting:
ThT
Application:
10/100/1000Mbps
Termination:
Solder
LEDs:
Optional Green-Yellow
Samples:
Available
Specifications:
RV1-1100QP1A
P.N:
LPJD0608BHNL
Mounting:
ThT
Application:
10/100/1000Mbps
Termination:
Solder
LEDs:
Optional Green-Yellow
Samples:
Available
RV1-1100QP1A Vertical RJ45 Jack 10Position PCB Mounting for 1000Base-T Gigabit
RV1-1100QP1A Vertical RJ45 Jack 10Position PCB Mounting for 1000Base-T Gigabit

1.Gigabit (10/100/1000) Ethernet RJ45
2.RJ45 1X1 Vertical Through Hole
3.350uH min OCL at 8mA DC Bias Across theFull Temp Range
4.10/100/1000 Base-T Magnetic Inside
5.100% Compliance Testing
6.1500Vrms Hi-Pot
7..Designing Model:10/100/1000 Base-T
8..Pin to Pin Compatible Equivalent Cross Analogue LPJD0608BHNL

MAG., REVERSE LATCH , LED optional,
RV1-1100QP1A Vertical RJ45 Jack 10Position PCB Mounting for 1000Base-T Gigabit 0

Product Category: Modular Connectors / Ethernet Connectors
RoHS:  Details
Product: Modular Jacks
USOC Codes: RJ45 LPJD0608BHNL
Number of Positions: 10 Position
Number of Ports: 1 Port
Mounting Style: Panel
Termination Style: Through Hole
Shielding: Shielded
Voltage Rating: 1.5 kV
Color: Silver
Series: RV1-1100QP1A Pin Compatible
Packaging: Tray
Contact Material: Phosphor Bronze
Contact Plating: Gold
Gender: Female
Mounting Angle: Straight
Number of Rows: 1 Row
Factory Pack Quantity: 54
Type: Modular Jacks
