51F-1202GYD2NL , LPJD0011BENL Vertical RJ45 Jack 180° Magnetic Socket Shielded W/LED

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

51F-1202GYD2NL , LPJD0011BENL Vertical RJ45 Jack 180° Magnetic Socket Shielded W/LED

China 51F-1202GYD2NL , LPJD0011BENL Vertical RJ45 Jack 180° Magnetic Socket Shielded W/LED supplier
51F-1202GYD2NL , LPJD0011BENL Vertical RJ45 Jack 180° Magnetic Socket Shielded W/LED supplier 51F-1202GYD2NL , LPJD0011BENL Vertical RJ45 Jack 180° Magnetic Socket Shielded W/LED supplier 51F-1202GYD2NL , LPJD0011BENL Vertical RJ45 Jack 180° Magnetic Socket Shielded W/LED supplier

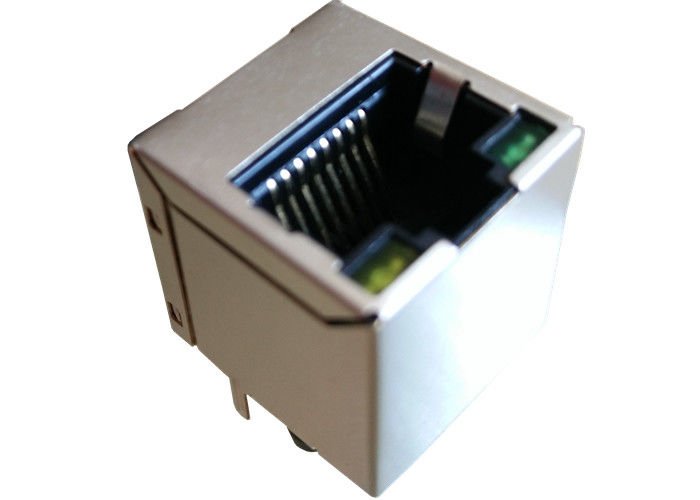

Large Image :  51F-1202GYD2NL , LPJD0011BENL Vertical RJ45 Jack 180° Magnetic Socket Shielded W/LED

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 51F-1202GYD2NL

Payment & Shipping Terms:

Minimum Order Quantity: 200 /500/1000
Price: Supportive
Packaging Details: 54 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10KGS (1080 pcs) of each carton
Delivery Time: Stock or 5weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Spec: 51F-1202GYD2NL Analogue PN: LPJD0011BENL
Application: 10/100Mbps Lan Termination: Solder
LEDs: Optional Samples: Free
File: PDF/3D/ISG/Stp/Step/Datasheet Manufacturer: LINK-PP

51F-1202GYD2NL , LPJD0011BENL Vertical RJ45 Jack 180° Magnetic Socket Shielded W/LED

LPJD0011BENL  FastJack ™ 1x1 Vertical 51F-1202GYD2NL RJ45 Analogue



1.Fast (10/100) Ethernet RJ45 Pin to Pin Equivalent Compatible
2.IEEE802.3u Compliant
3.350uH min OCL at 8mA DC Bias Across theFull Temp Range
4.30µ” Gold Plating (min) on Contacts
5.100% Compliance Testing
6.1500Vrms Hi-Pot



Vertical RJ45 Female Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,RoHS
LINK-PP Part Number LPJD0011BENL
Part Number 51F-1202GYD2NL
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 16.90
Package Length (mm) 16.00
Package Width (mm) 16.70
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

51F-1202GYD2NL , LPJD0011BENL Vertical RJ45 Jack 180° Magnetic Socket Shielded W/LED
MAG., REVERSE LATCH , LED optional, EMI-finger Optional.
