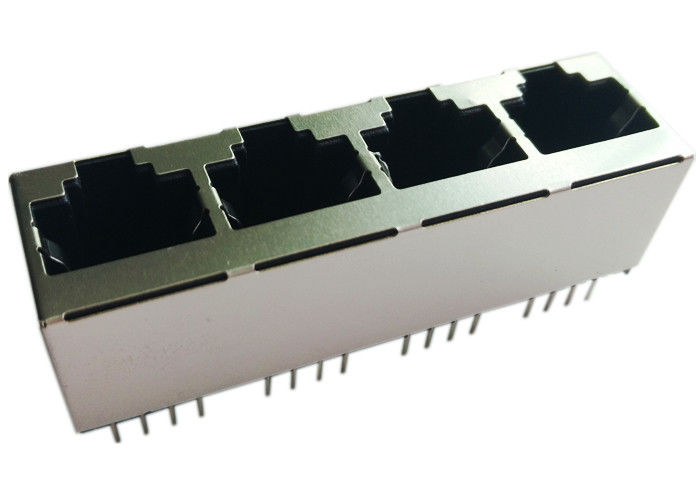

1x4 Vertical Mount 180 Degree , 4x Rj45 Top Entry LPJEF5240DNL Straight 8P8C

1x4 Vertical Mount 180 Degree , 4x Rj45 Top Entry LPJEF5240DNL Straight 8P8C
1x4 Vertical Mount 180 Degree , 4x Rj45 Top Entry LPJEF5240DNL Straight 8P8C
video play

Large Image :  1x4 Vertical Mount 180 Degree , 4x Rj45 Top Entry LPJEF5240DNL Straight 8P8C

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJEF5240DNL
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 20PCS /Tray,20Tray=400PCS Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000K/month
Detailed Product Description
Specification: LPJEF5240DNL Part No: LPJEF5240DNL
Port: Quad Ethernet Ethernet: Cat5/5e
Gender: Female,Receptacle Samples: Available
High Light:

modular jacks rj45

,

multi port connector

1x4 Vertical Mount 180 Degree , 4x Rj45 Top Entry LPJEF5240DNL Straight 8P8C

  • 1X4 Port RJ45 Jack 8P8C
  • LPJEF5240DNL # LINK-PP Rj45
  • Quad Port RJ45 JACK
  • Vertical Mount (180 degree)
  • PCB Mount Shield
  • Vertical RJ45 Jack Without Magnetics Without LED Model
  • 1x4 Vertical Mount 180 Degree , 4x Rj45 Top Entry LPJEF5240DNL Straight 8P8C 0



1x4 Vertical Mount 180 Degree , 4x Rj45 Top Entry LPJEF5240DNL Straight 8P8C 1

1x4 Vertical Mount 180 Degree , 4x Rj45 Top Entry LPJEF5240DNL Straight 8P8C 2

PCB JACK Specification
1.Insulation Resistance:500MΩMIN @ 500 VDC
2.Withstanding Voltage:AC1000V 50Hz or
60Hz 1min.
3.Durability:600 Mating Circles MIN.
4.Gold Plating:
(Gold Flash;1.5;3;6;15;30;50)u inch

ENVIRONMENTALl
1.Storage Temperature: -40℃ To +85℃
2.Opertion Temperature: -40℃ To +85℃
3.Wave Soldering Temperature:
255℃~265℃(5~10Seconds)
4.RoHs Compliant.

1x4 Vertical Mount 180 Degree , 4x Rj45 Top Entry LPJEF5240DNL Straight 8P8C 3
