Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJEF5240DNL
Document: LPJEF5240DNL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 20PCS /Tray,20Tray=400PCS Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000K/month
Part No: |
LPJEF5240DNL |
Port: |
1x4 Port |
Ethernet: |
Cat5/5e |
Gender: |
Female,Receptacle |
Free Samples: |
Available |
Type: |
Vertical RJ45 Modular Jack |
Latch: |
Up |
Mounting: |
THT |
Part No: |
LPJEF5240DNL |
Port: |
1x4 Port |
Ethernet: |
Cat5/5e |
Gender: |
Female,Receptacle |
Free Samples: |
Available |
Type: |
Vertical RJ45 Modular Jack |
Latch: |
Up |
Mounting: |
THT |

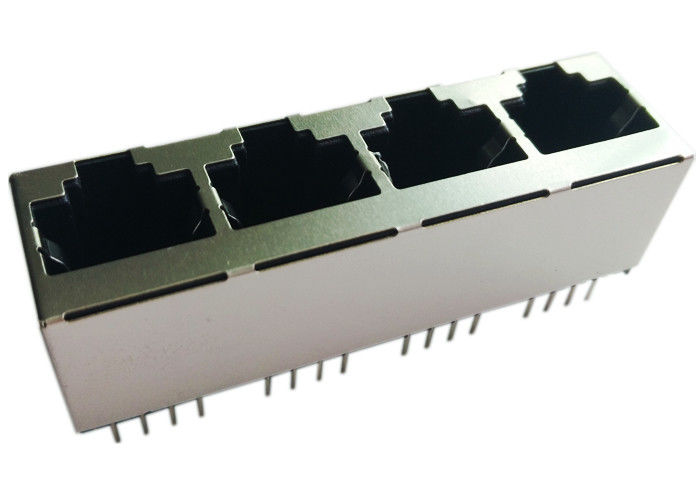

The LPJEF5240DNL from LINK-PP is a 4-port vertical RJ45 modular jack designed for reliable Ethernet connectivity in networking and communication equipment. Built with durable materials, gold-plated contacts, and robust mechanical performance, this connector ensures long-term stability in harsh environments. It supports 10/100 Base-T Ethernet applications and is compliant with RoHS 2011/65/EU, making it suitable for environmentally conscious designs.
|
|
|
|
Vertical PCB JACK Specification
ENVIRONMENTAL |
|
| Category | Parameter | Value |
|---|---|---|
| General | Part Number | LPJEF5240DNL |
| Type | RJ45 Modular Jack, 4-Port Vertical | |
| Standard | 8P8C (RJ45) | |
| Mounting Type | Through-Hole (THT) | |
| Material | Housing | Glass-filled polyester UL94V-0 |
| Contact | Phosphor bronze with gold plating over nickel | |
| Shield | 0.20 mm copper alloy with nickel plating | |
| Electrical | Voltage Rating | 125V AC |
| Current Rating | 1.5A | |
| Contact Resistance | ≤ 30 mΩ | |
| Insulation Resistance | ≥ 500 MΩ @ 500V DC | |
| Dielectric Withstanding Voltage | 1000V AC RMS, 50/60 Hz, 1 min | |
| Gold Plating Options | Flash, 1.5µ", 3µ", 6µ", 15µ", 30µ", 50µ" | |
| Mechanical | Insertion Force | ≤ 2.2 kg |
| Retention Strength | ≥ 7.7 kg between jack and plug | |
| Durability | ≥ 750 mating cycles | |
| Environmental | Storage Temperature | −40°C ~ +85°C |
| Operating Temperature | −40°C ~ +85°C | |
| Wave Peak Temperature | 260°C for 5 sec | |
| Compliance | Standards |
IEEE 802.3, UL, RoHS 2011/65/EU, ISO9001, ISO14001 |
LINK-PP delivers high-performance, cost-effective Ethernet connectivity components trusted by leading OEMs worldwide. The LPJEF5240DNL offers superior durability, electrical performance, and environmental compliance, making it an ideal choice for modern networking hardware.
